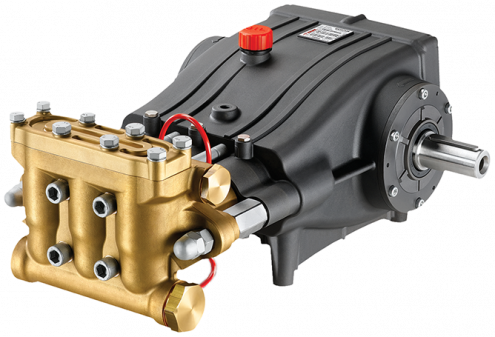

GXT Series

GXT pumps can operate at a maximum pressure of 280 bar, flow rates up to 165 lpm, and with water temperatures up to 65°C (149F). This model is suitable for fitting on gantry-style washing systems for heavy goods vehicles, on large vehicles for municipal cleaning services, or misting systems or fire extinguishing systems, where its superior flow rate performance is beneficial.

TECHNICAL CHARACTERISTICS

Weight	Kg	67.5
Oil capacity	lt.	5.5
Inlet	G	1 1/2''
Outlet	G	1''

Request information

Exploded view

Technical sheets - GXT Pump

TECHNICAL CHARACTERISTICS

Weight	Kg	67.5
Oil capacity	lt.	5.5
Inlet	G	1 1/2''
Outlet	G	1''

The GXT Series is suitable for the following applications:

Industrial Cleaning

Municipality

Misting

Fire Fighting

Find out about all the models in the series GXT.

Part. No. CODE	Part. No. CODE	FLOW RATE		MAX PRESSURE		RPM	MAX POWER		POWER TAKE-OFF
		FLOW RATE		MAX PRESSURE			MAX POWER
		L/MIN	US GPM	BAR	PSI		HP	KW

GXT8020SL	1.099-207.0	80	20.9	200	2900	1000	41.1	30.2
GXT8020SR	1.099-208.0	80	20.9	200	2900		41.1	30.2
GXT1020SL	1.099-209.0	100	25.8	200	2900		51.3	37.7
GXT1020SR	1.099-210.0	100	25.8	200	2900		51.3	37.7
GXT1215SL	1.099-211.0	120	31.3	150	2175		47	34.6
GXT1215SR	1.099-212.0	120	31.3	150	2175		47	34.6
GXT1515SL	1.099-213.0	150	39.2	150	2175		59	43.4
GXT1515SR	1.099-214.0	150	39.2	150	2175		59	43.4
GXT1712SL	1.099-215.0	170	45	120	1740		52.4	38.6
GXT1712SR	1.099-216.0	170	45	120	1740		52.4	38.6

Discover the related ACCESSORIES

Flexible coupling

Flexible couplings for electic motors

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Flexible coupling

Flexible couplings for electic motors

CODE	MOTOR CONTRUCTION SHAPE	MOTOR P.T.O. Ø	PUMP P.T.O. Ø	FOR PUMP SERIES
CODE	MOTOR CONTRUCTION SHAPE	MOTOR P.T.O. Ø	PUMP P.T.O. Ø	FOR PUMP SERIES
1.904-313.0	IEC225	60 mm	40 mm	HFR, HHP 500 - 1000 rpm, HHP 500 - 1450 rpm, GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX
1.904-757.0	IEC250	65 mm	40 mm	HFR, HHP 500 - 1000 rpm, GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX
1.904-758.0	IEC280	75 mm	40 mm	GXT, GXT High temperature, GPX, GXX, TXT, TPX, TXX

Go to the complete technical data sheet

Hydraulic flanges and couplings kit

Flanges and couplings kit for hydraulic motors

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Hydraulic flanges and couplings kit

Flanges and couplings kit for hydraulic motors

CODE	MOTOR CONTRUCTION SHAPE	MOTOR P.T.O. Ø	PUMP P.T.O. Ø	FOR PUMP SERIES
CODE	MOTOR CONTRUCTION SHAPE	MOTOR P.T.O. Ø	PUMP P.T.O. Ø	FOR PUMP SERIES
1.905-537.0	SAE J744 C	1'' 1/4	40	HFR, HHP 500 - 1000 rpm, HHP 500 - 1450 rpm, GXT, GXT High temperature, GPX, TXT, TPX

Go to the complete technical data sheet

Gearboxes for 55kw motors

Gearboxes for 55kw petrol engines and electric motors

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Gearboxes for 55kw motors

Gearboxes for 55kw petrol engines and electric motors

CODE	MOTOR SHAFT DIAMETER	INLET SPEED	OUTLET SPEED	MAX POWER	RATIO	FOR PUMP SERIES
CODE	Ø	RPM	RPM	KW	N1 / N2	FOR PUMP SERIES
1.904-861.0	40	1480	1000	55	1.48	GXT, GPX, GXX, TXT, TPX
1.904-862.0	40	1820	1000	55	1.82	GXT, GPX, GXX, TXT, TPX
1.904-863.0	40	2260	1000	55	2.26	GXT, GPX, GXX, TXT, TPX

Go to the complete technical data sheet

VB 85/280

Unloader valve
with by-pass

Max lpm 80 & 280 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VB 85/280

Unloader valve
with by-pass

Max lpm 80 & 280 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
1.099-504.0	80	21	280	4050	G 1/2 F	G 1/2 F	G 1/2 F

Go to the complete technical data sheet

VB 200/150

Unloader valve
with by-pass

Max lpm 200 & 150 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VB 200/150

Unloader valve
with by-pass

Max lpm 200 & 150 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
1.099-502.0	200	53	150	2200	G 1 F	G 1 F	G 1 F

Go to the complete technical data sheet

VRPP 170

Unloader valve with by-pass and pneumatic control

Max lpm 200 & 150 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VRPP 170

Unloader valve with by-pass and pneumatic control

Max lpm 200 & 150 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
1.904-283.0	200	53	150	2200	G 1F	G 1F	G 1F

Go to the complete technical data sheet

VB 200/280

Unloader valve
with by-pass

Max lpm 200 & 280 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VB 200/280

Unloader valve
with by-pass

Max lpm 200 & 280 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
9.853-301.0	4060	53	280	4050	G 1 F	G 1 F	G 1 F

Go to the complete technical data sheet

VRPP 200/280

Unloader valve with by-pass and pneumatic control

Max lpm 200 & 280 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VRPP 200/280

Unloader valve with by-pass and pneumatic control

Max lpm 200 & 280 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET	BY-PASS
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET	BY-PASS
1.904-943.0	200	53	280	4060	G 1 F	G 1 F	G 1 F

Go to the complete technical data sheet

VS 200/200

Pressure relief valve

Max 200 lpm & 200 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VS 200/200

Pressure relief valve

Max 200 lpm & 200 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET
1.099-503.0	200	53	180	2600	G 3/4 F	G 1/2 F

Go to the complete technical data sheet

VS 500

Pressure relief valve

Max 80 lpm & 500 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

VS 500

Pressure relief valve

Max 80 lpm & 500 bar

CODE	FLOW RATE		MAX PRESSURE		INLET	OUTLET
CODE	L/MIN	US GPM	BAR	PSI	INLET	OUTLET
1.099-500.0	80	21	500	7250	G 1/2 F	G 3/8 F

Go to the complete technical data sheet

RL 84 Spray gun

Spray gun

Max 80 lpm & 500 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

RL 84 Spray gun

Spray gun

Max 80 lpm & 500 bar

CODE	FLOW RATE		MAX PRESSURE		TEMPERATURE		INLET	OUTLET
CODE	L/MIN	US GPM	BAR	PSI	°C	°F	INLET	OUTLET
1.099-523.0	80	21.1	500	7250	100	210	G 1/2 F	G 1/2 F

Go to the complete technical data sheet

RL 204 spray gun

High flow rate spray gun

Max 200 lpm & 200 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

RL 204 spray gun

High flow rate spray gun

Max 200 lpm & 200 bar

CODE	FLOW RATE		MAX PRESSURE		TEMPERATURE		INLET	OUTLET
CODE	L/MIN	US GPM	BAR	PSI	°C	°F	INLET	OUTLET
1.099-522.0	200	53	200	3000	100	210	G 3/4 F	G 1/2 F

Go to the complete technical data sheet

Shoulder Rest

Shoulder Rest

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Shoulder Rest

Shoulder Rest

CODE	FOR ACCESSORIES
CODE	FOR ACCESSORIES
1.099-686.0	RL84 - RL204 - RL600

Go to the complete technical data sheet

High flow lance

Single lance with handle for RL84 and RL204

Max 200 lpm & 500 bar

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

High flow lance

Single lance with handle for RL84 and RL204

Max 200 lpm & 500 bar

CODE	LENGTH	FLOW RATE		MAX PRESSURE		TEMPERATURE		INLET	OUTLET
CODE	MM	L/MIN	US GPM	BAR	PSI	°C	°F	INLET	OUTLET
1.099-654.0	800	200	53	500	7250	43	109	G 1/2 M	1/4 Npt F

Go to the complete technical data sheet

Pressure Gauge

Pressure gauge

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Pressure Gauge

Pressure gauge

CODE	COUPLING	SCALE		INLET
CODE	COUPLING	BAR	PSI	INLET
1.099-556.0	Radial / Radiale	250	3625	G 1/4 M
1.099-553.0	Radial / Radiale	315	4500	G 1/4 M
1.099-554.0	Radial / Radiale	400	5800	G 1/4 M

Go to the complete technical data sheet

Ordinary Maintenance Tool Kit

Tool kit for ordinary maintenance

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Ordinary Maintenance Tool Kit

Tool kit for ordinary maintenance

CODE	FOR PUMP SERIES
CODE	FOR PUMP SERIES
1.905-635.0	GXT, GXT High temperature, GPX

Go to the complete technical data sheet

Extraordinary maintenance Kit

SEE THE ACCESSORIES SUITED FOR THIS SERIES >

Extraordinary maintenance Kit

CODE	FOR PUMP SERIES
CODE	FOR PUMP SERIES
1.905-636.0	GXT, GXT High temperature, GPX

Go to the complete technical data sheet
