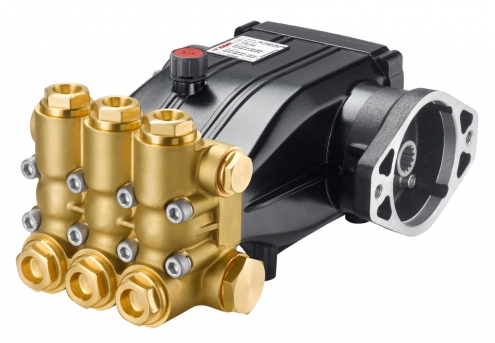

XLTI-HY Series

XLTI-HY pumps can operate at a maximum pressure of 170 bar and with water temperatures up to 65°C (150F). This version has a flange for coupling up to a hydraulically-operated motor and so it adapts perfectly to vehicles for municipal cleaning services

TECHNICAL CHARACTERISTICS
Weight Kg 18.6
Oil capacity lt. 1.2
Inlet G 3/4"
Outlet G 1/2"
Request information
TECHNICAL CHARACTERISTICS
Weight Kg 18.6
Oil capacity lt. 1.2
Inlet G 3/4"
Outlet G 1/2"

The XLTI-HY Series is suitable for the following applications:


Municipality

Find out about all the models in the series XLTI-HY.

Part. No.
CODE 		Part. No.
CODE 		FLOW RATE MAX PRESSURE RPM MAX POWER TEMPERATURE POWER TAKE-OFF
L/MIN US GPM HP KW
50Hz 60Hz 50Hz 60Hz BAR PSI 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz °C °F

XLT4017HYR 1.904-774.0 40 48 10.6 12.7 170 2465 1450 1740 17 20.4 12.5 15 65 150
XLT5015HYR 1.904-775.0 50 60 13.2 15.8 150 2175 18.8 22.6 13.8 16.6 65 150
