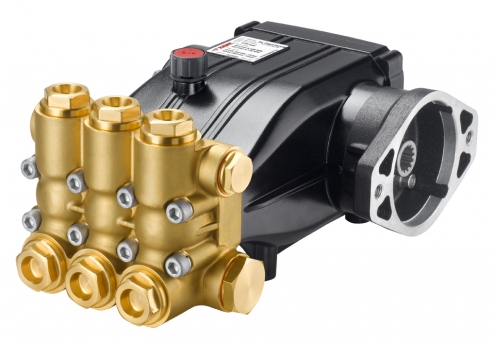

XXT-HY Series

XXT-HY pumps can operate at a maximum pressure of 200 bar and with water temperatures up to 65°C (150F). This version has a flange for coupling up to a hydraulically-operated motor and so it adapts perfectly to vehicles for municipal cleaning services

TECHNICAL CHARACTERISTICS
Weight Kg 18.4
Oil capacity lt. 1.2
Inlet G 1"
Outlet G 3/4''
Request information
TECHNICAL CHARACTERISTICS
Weight Kg 18.4
Oil capacity lt. 1.2
Inlet G 1"
Outlet G 3/4''

The XXT-HY Series is suitable for the following applications:


Municipality

Find out about all the models in the series XXT-HY.

Part. No.
CODE 		Part. No.
CODE 		FLOW RATE MAX PRESSURE RPM MAX POWER TEMPERATURE POWER TAKE-OFF
L/MIN US GPM HP KW
50Hz 60Hz 50Hz 60Hz BAR PSI 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz °C °F

XXT5520HYR 1.904-776.0 55 66 14.6 17.5 200 2900 1450 1740 28.8 34.6 21.2 25.4 65 150
XXT7015HYR 1.904-777.0 70 84 18.5 22.2 150 2175 27.1 32.5 20 24 65 150
